Processing Cases

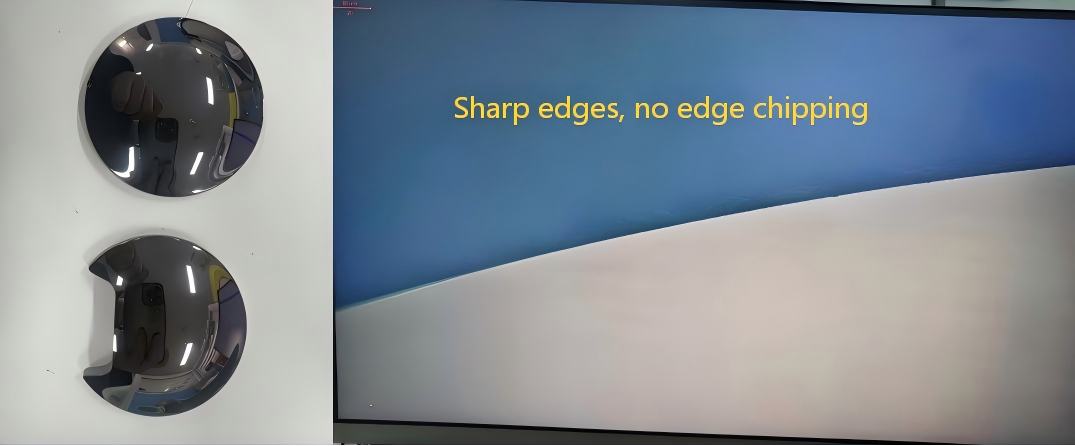

Silicon Carbide AR Lens

Watlaser Water Guided Laser technology enables high-precision processing of Silicon Carbide (SiC) AR lenses while minimizing thermal damage and edge chipping.

Compared with conventional machining methods, Water Guided Laser technology provides a highly precise, low-thermal-impact solution for the processing of brittle SiC optical components.

This enables:

· Single-cut processing time: only 3 min 38 sec

· Thermal damage: < 10 μm

· Edge chipping: < 15 μm

· Dimensional error: < 18 μm

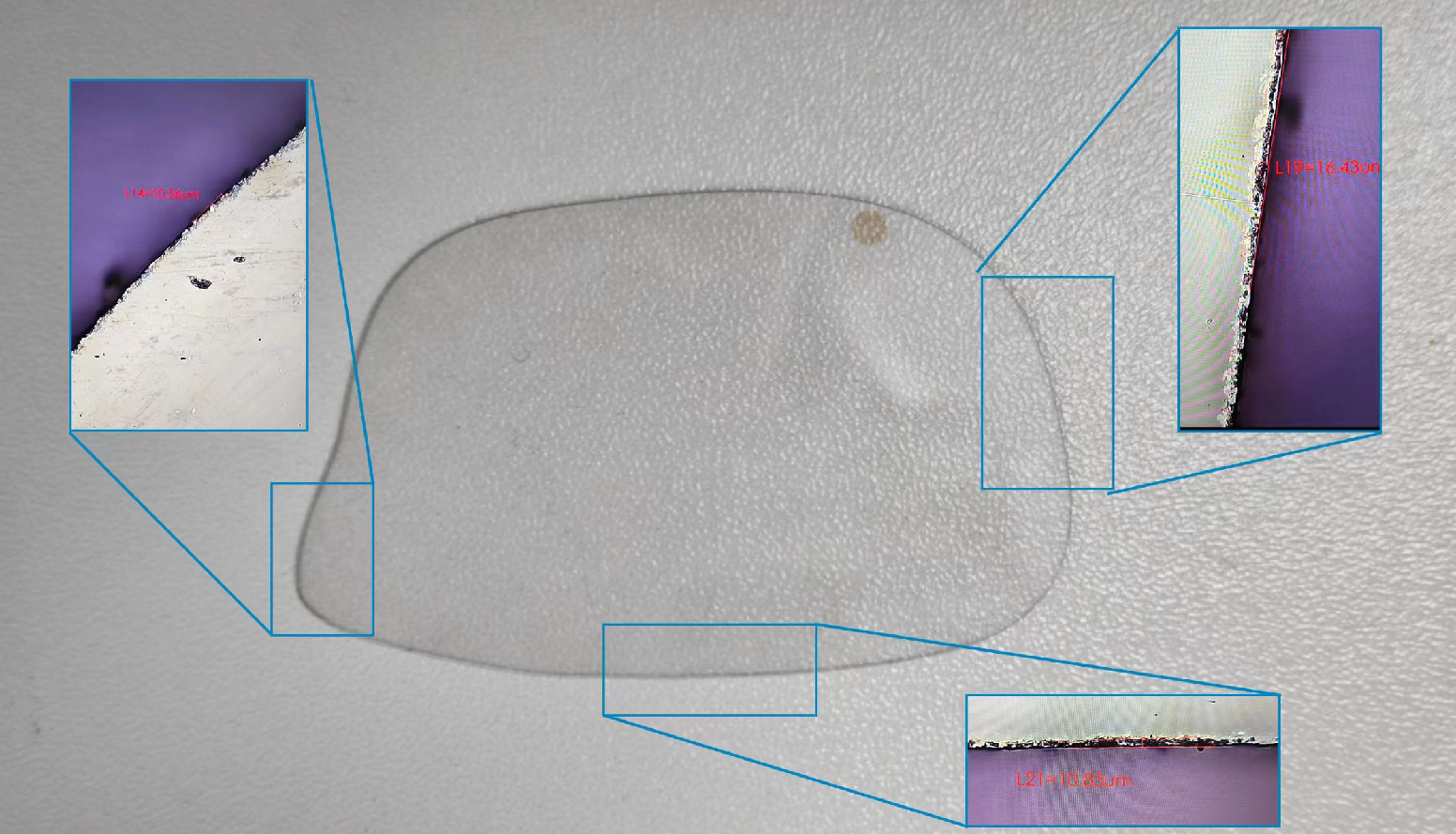

Chalcogenide Glass

Chalcogenide glass is an advanced infrared optical material widely used in thermal imaging, infrared optics, sensing, and other optical applications. Its excellent infrared transmission properties make it valuable for advanced optical systems.

However, its brittle characteristics make precision cutting and machining challenging.

Watlaser Water Guided Laser technology provides a low-thermal-impact, non-contact machining solution, helping minimize cracking, chipping, and other processing defects.

Key Processing Advantages

· Low thermal impact

· Reduced edge chipping

· Reduced microcracks

· High dimensional accuracy

· Excellent processing consistency

The consumer electronics industry continues to demand thinner materials, smaller components, tighter tolerances, and higher manufacturing consistency. Watlaser Water Guided Laser technology combines a focused laser beam with a high-speed water jet to provide precise, low-thermal-impact machining for thin and delicate materials.It is particularly suitable for ultra-thin substrates, precision electronic components, microstructures, and other difficult-to-process materials.

Consumer Electronics

Recommended Equipment

WGL3-150 Green (532 nm) Water Guided Laser Machining System

The WGL3‑150 is a general‑purpose water guided laser precision processing machine, capable of cutting, drilling, slotting and engraving.

It comes standard with multiple automated auxiliary systems, including a micron‑level CCD alignment system, automatic water‑column calibration unit, and laser power detection system.

¥ 0.00

WGL3-400 Infrared (1064 nm) Water Guided Laser Machining System

WGL3‑400 is a dedicated waterguided laser precision‑processing machine primarily for metals. It performs cutting, drilling, slotting and engraving.

Versus WGL3‑150, WGL3‑400 delivers lower procurement and operational costs.

Standard‑fitted with automated auxiliary systems: micron‑level CCD alignment system, automatic water‑column calibration unit and laser power detection system.

¥ 0.00
