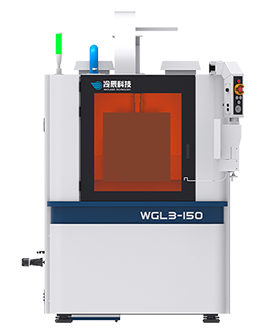

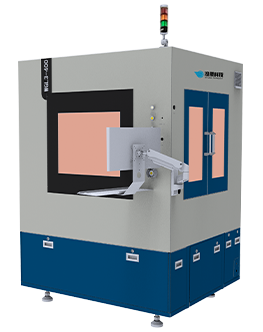

WGL3-150 Water jet guided laser machine
Compared to traditional laser processing, water jet guided laser processing does not require focusing, has almost no thermal damage to the workpiece, almost no taper in the profile, good surface quality of the cutting surface, and low workpiece loss.
Main Frame
The main body of the bed adopts a marble tabletop, and the X/Y axes use linear motors. The rotating axis is optional, and the coupling head for coupling water and light is fixed on the Z-axis.
Auxiliary Cabinet
The auxiliary cabinet is mainly composed of a pure water machine, a booster pump, and a laser. The pure water machine provides ultrapure water, the booster pump boosts the ultrapure water to 10-50 MPa, and the laser provides energy source for processing.
Automation system
Multiple automated auxiliary systems are also standard configurated in WGL3-150, including micrometer level CCD alignment system, water-jet direction automatic correction device, and laser power detection system.
advantages
Fast Coupling
Collision protection
Durable nozzles
The patented coupling technology has simple and precise coupling operation, and the diameter of nozzle can be as small as 20μm.
Durable nozzles
Collision protection
Durable nozzles
Self developed nozzle manufacturing process, with a normal service life of over one month for 50μm nozzles.
Collision protection
Collision protection
Collision protection
You can set up a 'protected restricted area' to reduce maintenance time caused by collisions.
Resume breakpoint
High precision bed frame
Collision protection
After unexpected interruption, processing can continue from the original position without wasting the workpiece.
High precision bed frame
High precision bed frame
High precision bed frame
The bed body, independently designed and tested, has undergone finite element analysis and actual measurement of its dynamic and static stiffness.
Multi axis expansion
High precision bed frame
High precision bed frame
More than ten years of experience in five axis CNC systems and hardware, supporting multi-axis customization and upstream and downstream automation.
partially processable materials
Superhard material
Superhard material
Superhard material
Chemical Vapor Deposition (CVD) Diamond, Natural Diamond (ND), Hard Alloy (WC), Polycrystalline Cubic Boron Nitride (PCBN)
Metallic materials
Superhard material
Superhard material
Almost all types of metals on the market are included
Ceramic material
Compound material
Compound material
Silicon carbide (SiC), aluminum nitride (AlN), aluminum oxide (Al2O3), zirconium oxide (ZrO2), low-temperature co fired ceramics (LTCC)
Compound material
Compound material
Compound material
Silicon carbide based ceramic composites (CMC), carbon fiber reinforced composites（CFRP）
