Precision Water Guided Laser for Advanced Materials
The water guided laser continuously cools the workpiece during processing, significantly reducing thermal effects.
Almost No Thermal Damage
The water guided laser enables highly vertical cutting profiles with excellent dimensional consistency.
Almost No Taper
Reduced thermal effects and mechanical stress help achieve high-quality processing surfaces.
High Surface Quality
Fast Coupling
Fast and precise laser-water coupling supports fine processing with small nozzle diameters.
Self-Developed Nozzles
Advanced nozzle technology helps reduce consumable replacement frequency.
Collision Protection
Intelligent protection helps prevent equipment and workpiece damage caused by accidental collision.
Multi-Axis Expansion
Supports rotary-axis integration and multi-axis processing for complex components.
Integrated Automated Auxiliary Systems
CCD Alignment
Automatic Water-Column Calibration
Laser Power Detection
Semiconductor
Semiconductor
· SiC
· Diamond Copper
· Advanced materials
Ceramics
Ceramics
· AlN
· Al₂O₃
· ZrO₂
Aerospace
Aerospace
· CMC
· CFRP
Metal
Metal
A wide range of metal materials and industrial components.
Diamond
Diamond
· Precision cutting
· Microstructures
· Heat spreaders

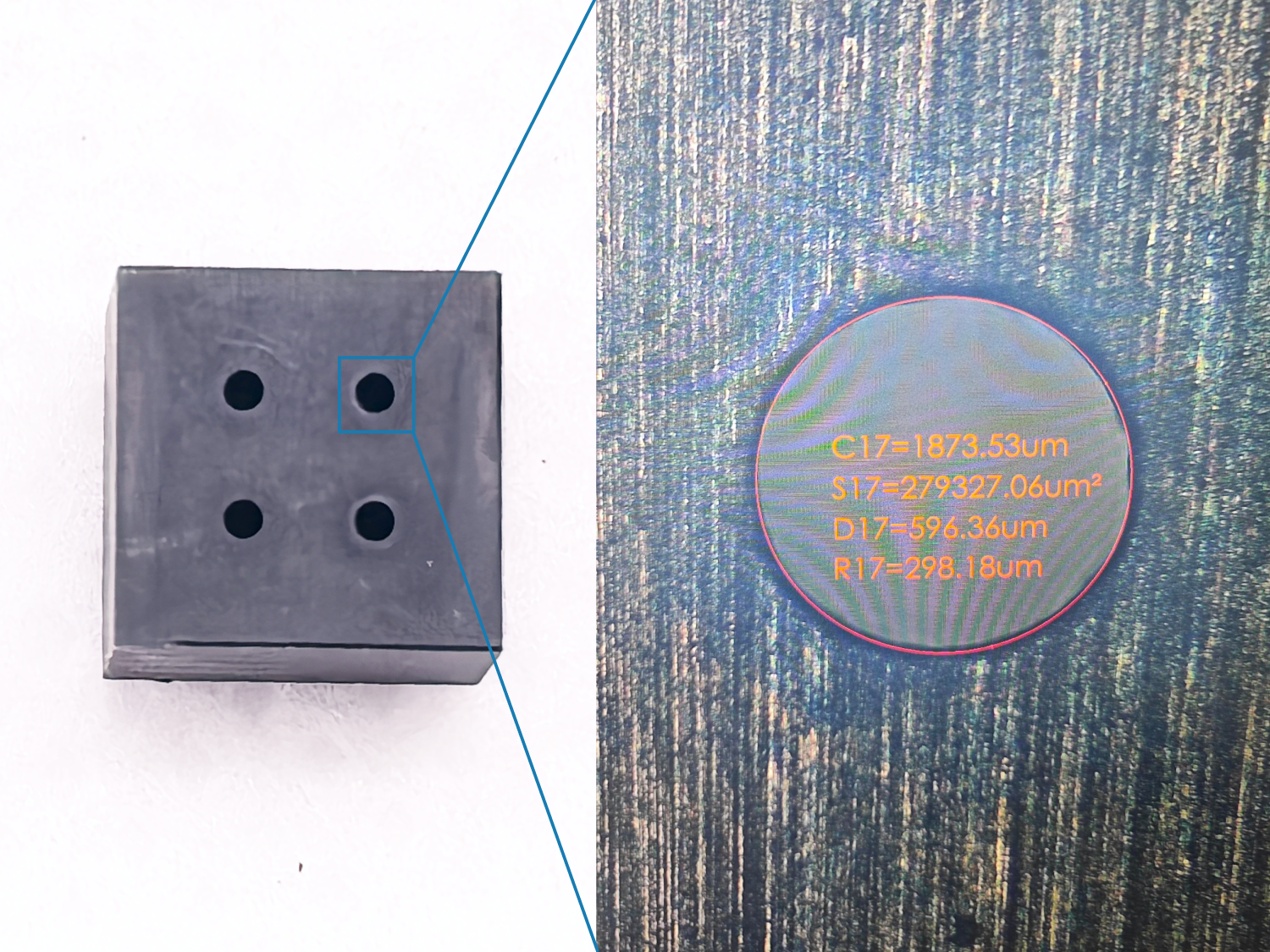

SiC Micro-Hole Processing
· 4.2 mm thickness
· 600 μm hole diameter
· <5 μm dimensional error
· No edge chipping

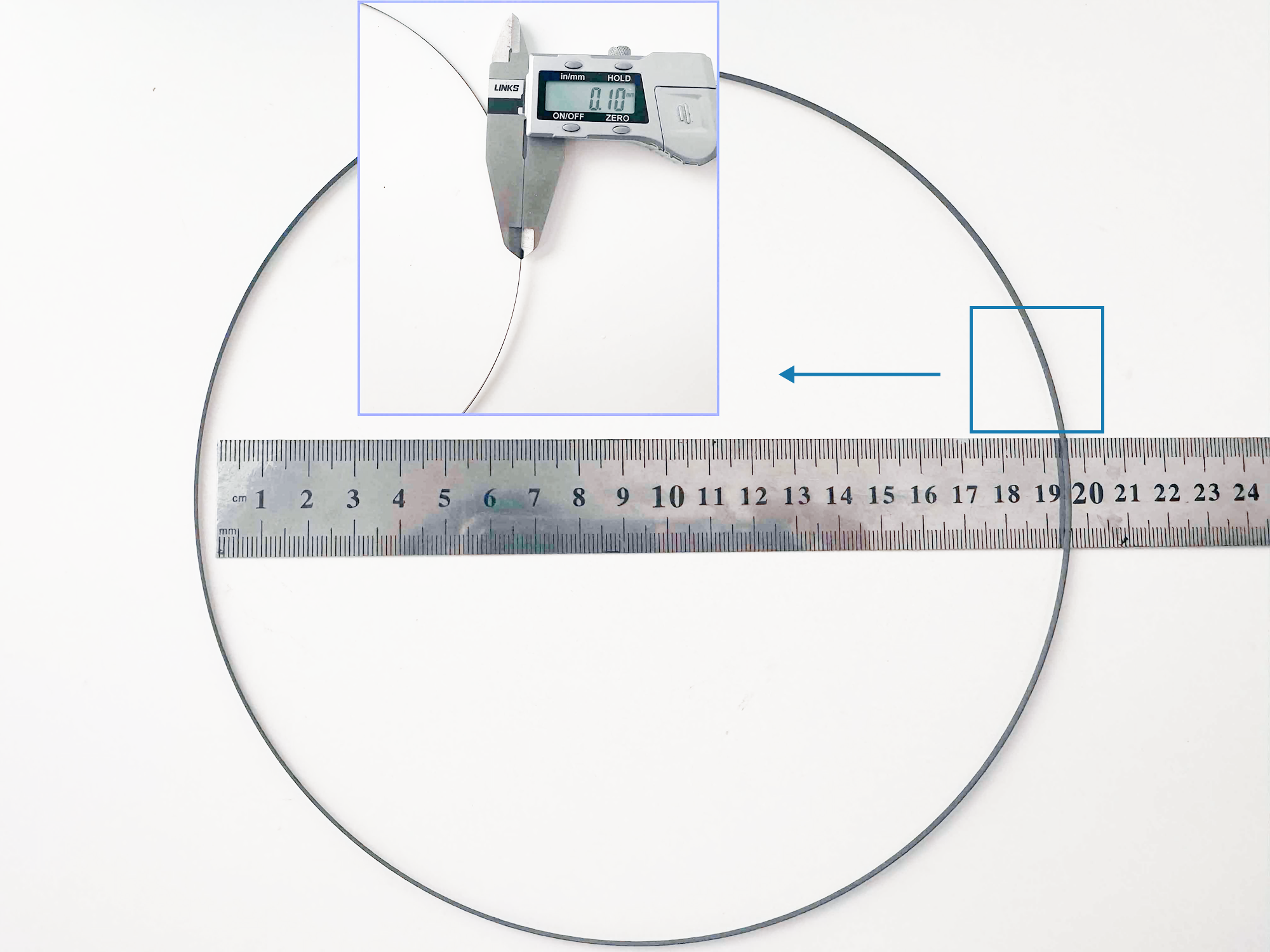

SiC Thin-Wall Ring
· 100 μm wall thickness
· <10 μm thickness error
· No fracture or edge chipping
Diamond Single Knife Deep
· Single-pass cutting depth: 20 mm+
· Flip-side cutting depth: 40 mm+
The technology has reached a leading level in China
Looking for a More Cost-Effective Water Guided Laser Solution? Tell us your material, workpiece dimensions and processing requirements. Our engineers can recommend the appropriate water guided laser solution for your application.
Laser Type Green Laser
Laser Wavelength 532nm
Max. Laser Power 400 W
Max. Water Pressure 500 bar
Positioning Accuracy ±3μm
Repeatability ±1.5μm
Watlaser Technology develops and manufactures Water Guided Laser systems for precision machining of advanced materials. With in-house expertise in CNC systems, optical coupling, fluid control, and core hardware, Watlaser provides high-precision processing solutions for semiconductor, diamond, aerospace, medical, and industrial applications.
