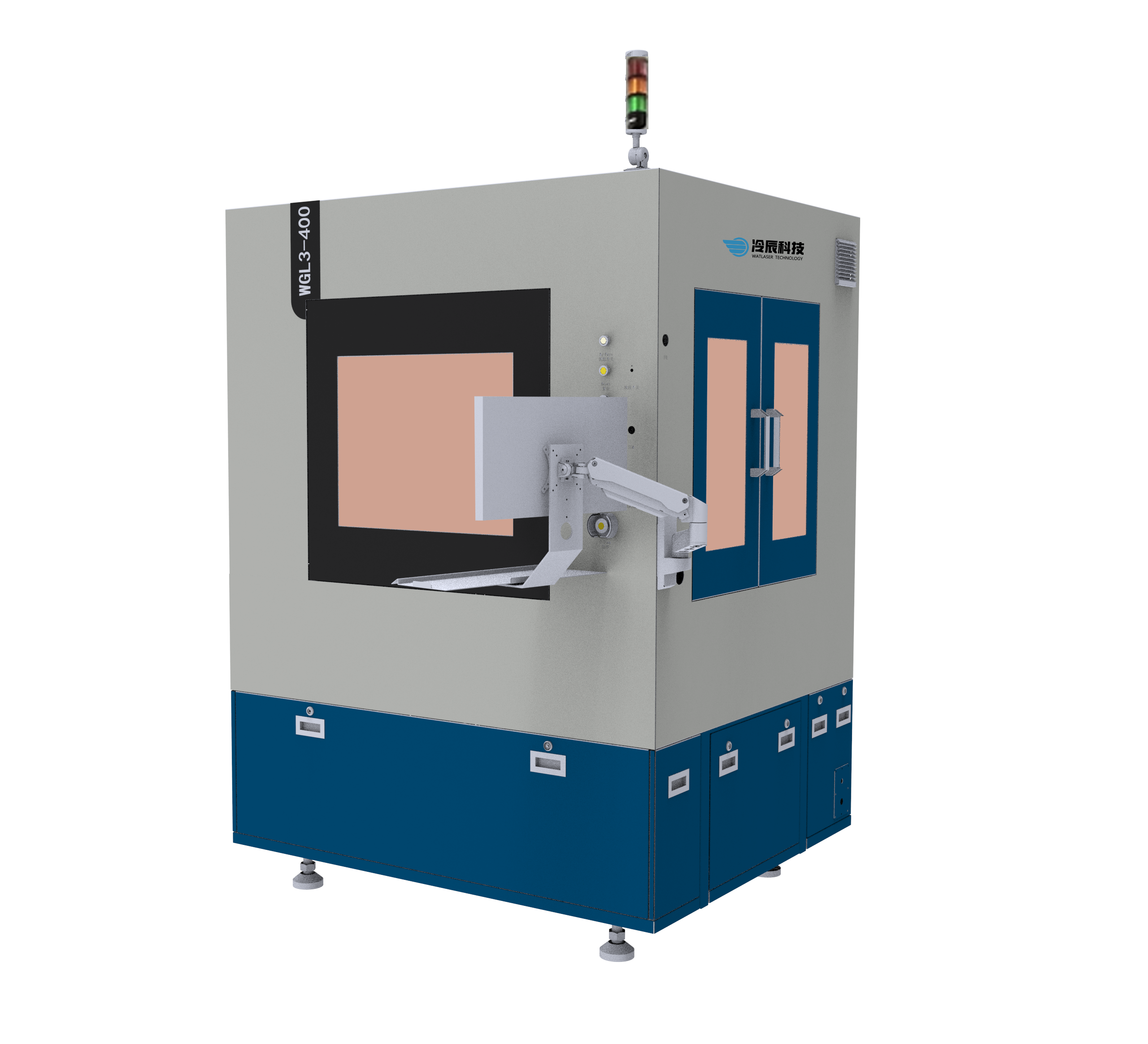

WGL3-400 Infrared (1064 nm) Water Guided Laser Machining System

Water Guided Laser for Precision Metal Processing

The WGL3-400 Infrared Water Guided Laser System is designed primarily for precision metal processing applications.

Combining infrared laser technology with Water Guided Laser processing, the system provides controlled laser machining with continuous water cooling, helping reduce thermal impact while maintaining processing precision.

The WGL3-400 is an attractive solution for manufacturers seeking precision, stability, and cost-effective Water Guided Laser processing.

Part of Machinable Materials

· Metal Materials: Contains almost all the metal on the market

· Ceramic Materials: Silicon carbide (SiC), aluminum nitride (AlN), alumina (Al2O3), zirconia (ZrO2), low temperature co-fired ceramics (LTCC)

· Composite Materials: Silicon Carbide Matrix Ceramic Composites (CMC), Carbon Fiber Reinforced Composites (CFRP)

Equipment Advantages

· Fast Coupling patented coupling technology, the coupling operation is simple and accurate, and the nozzle can be as small as 20μm in diameter.
· Consumables Durable self-developed nozzle manufacturing process, 50μm nozzle normal service life of more than one month.
· Collision protection can set the "protection exclusion zone" to reduce the maintenance time caused by the collision.
· Resume After Interruption is accidentally stopped, the processing can be continued from the original position without wasting the workpiece.
· High precision bed in dependent design and inspection of the bed, dynamic and static stiffness through finite element analysis and measurement.
· Multi-axis expansion more than ten years of experience in five-axis CNC systems and hardware, supporting five-axis applications and upstream and downstream automation.

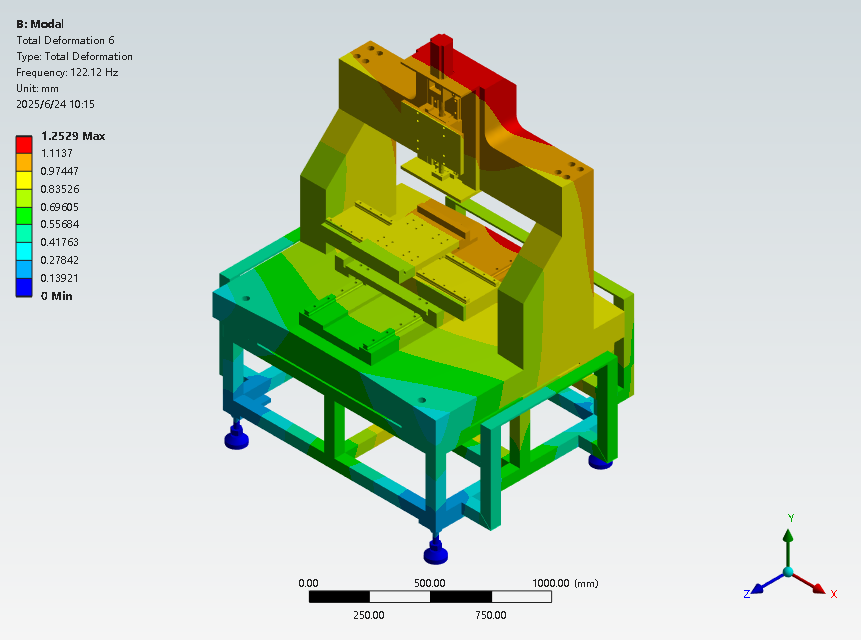

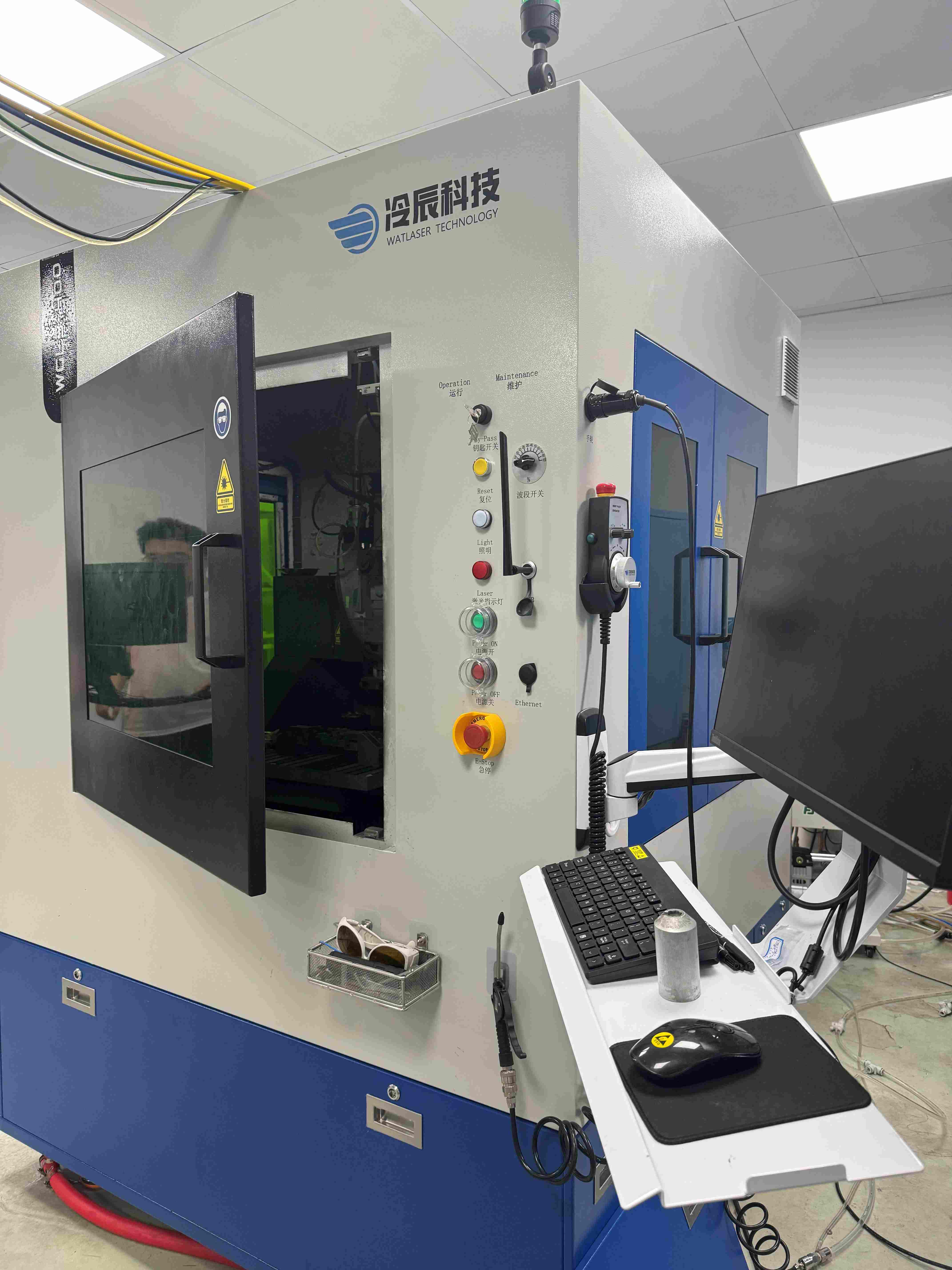

Simulation And Real Machine

WGL3-400 Product Specifications
