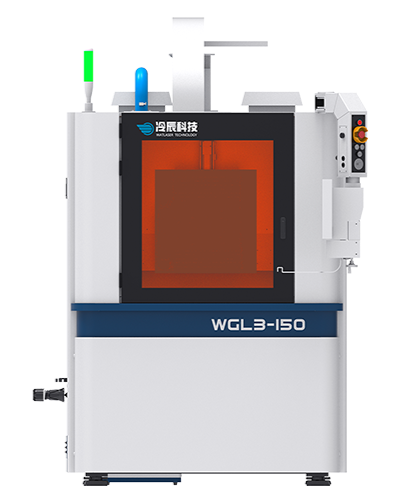

WGL3-150 Green (532 nm) Water Guided Laser Machining System

Precision Water Guided Laser for Advanced Materials

The WGL3-150 Green Water Guided Laser System combines 532 nm green laser technology with a high-speed water-guided beam to deliver high-precision, low-thermal-impact machining.

Designed for challenging materials and precision applications, the WGL3-150 supports cutting, drilling, slotting, and engraving with excellent accuracy and surface quality.

Part of Machinable Materials

· Superhard Materials: Chemical vapor deposition (CVD) diamond, natural diamond (ND), cemented carbide (WC), polycrystalline cubic boron nitride (PCBN)

· Metal Materials: Contains almost all types of metal on the market

· Ceramic Materials: Silicon carbide (SiC), aluminum nitride (AlN), alumina (Al2O3), zirconia (ZrO2), low temperature co-fired ceramics (LTCC)

· Composite Materials: Silicon Carbide Matrix Ceramic Composites (CMC), Carbon Fiber Reinforced Composites (CFRP)

Equipment Advantages

· Fast Coupling patented coupling technology, the coupling operation is simple and accurate, and the nozzle can be as small as 20μm in diameter.
· Consumables Durable self-developed nozzle manufacturing process, 50 m nozzle normal service life of more than one month.
· Collision protection can set the "protection exclusion zone" to reduce the maintenance time caused by the collision.
· Resume After Interruption is accidentally stopped, the processing can be continued from the original position without wasting the workpiece.
· High precision bed independent design and inspection of the bed, dynamic and static stiffness through finite element analysis and measurement.
· Multi-axis expansion more than ten years of experience in five-axis CNC systems and hardware, supporting five-axis applications and upstream and downstream automation.

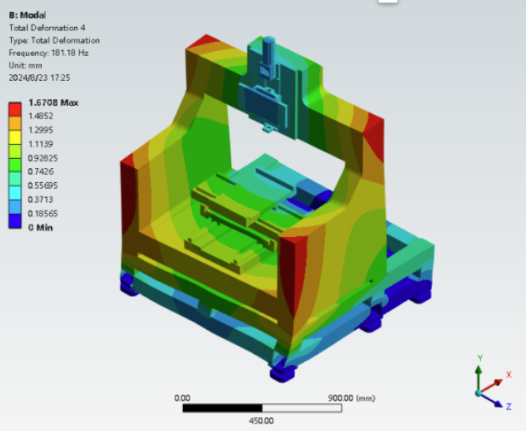

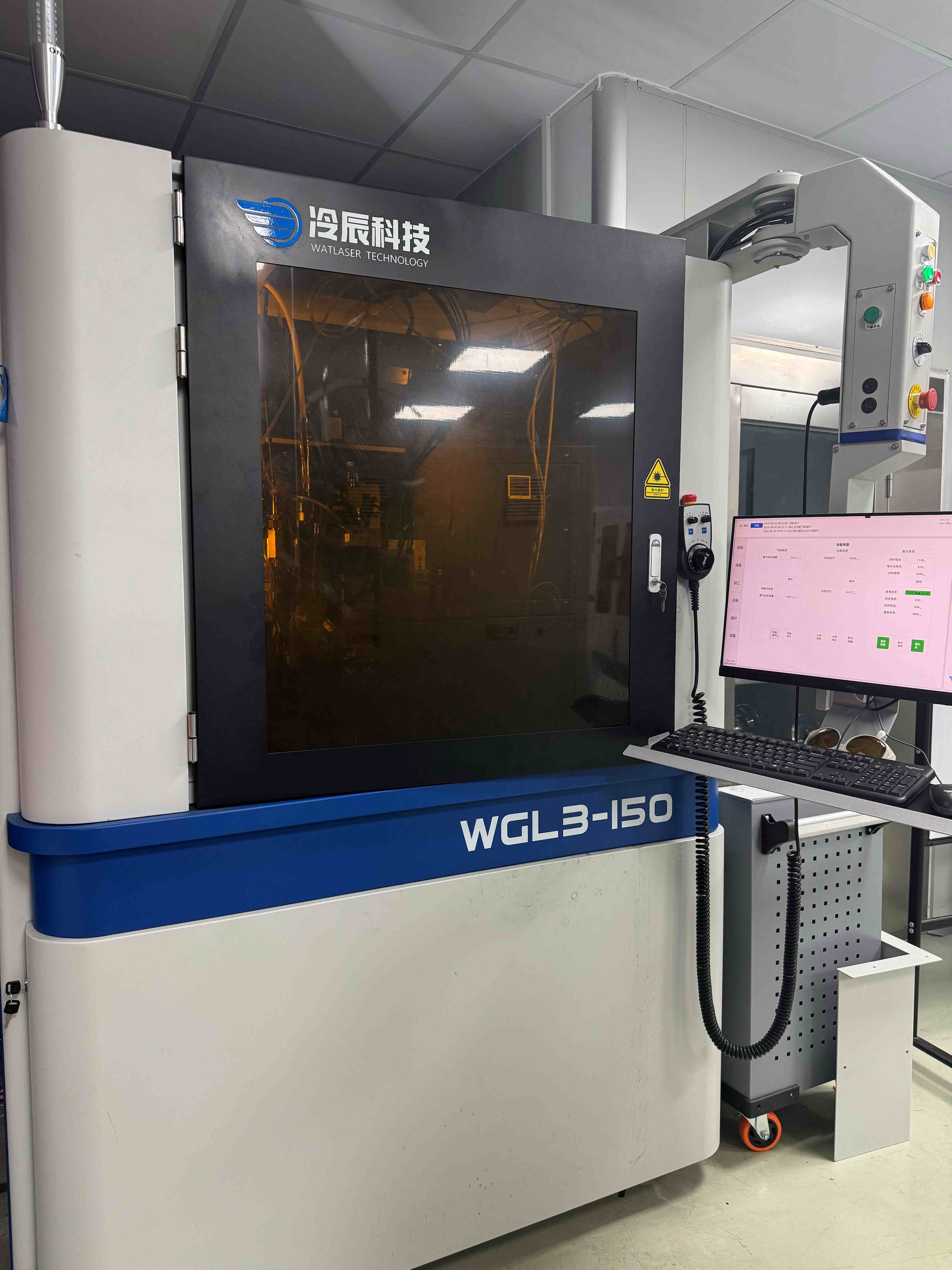

Simulation And Real Machine

WGL3-150 Product Specifications
